• Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards

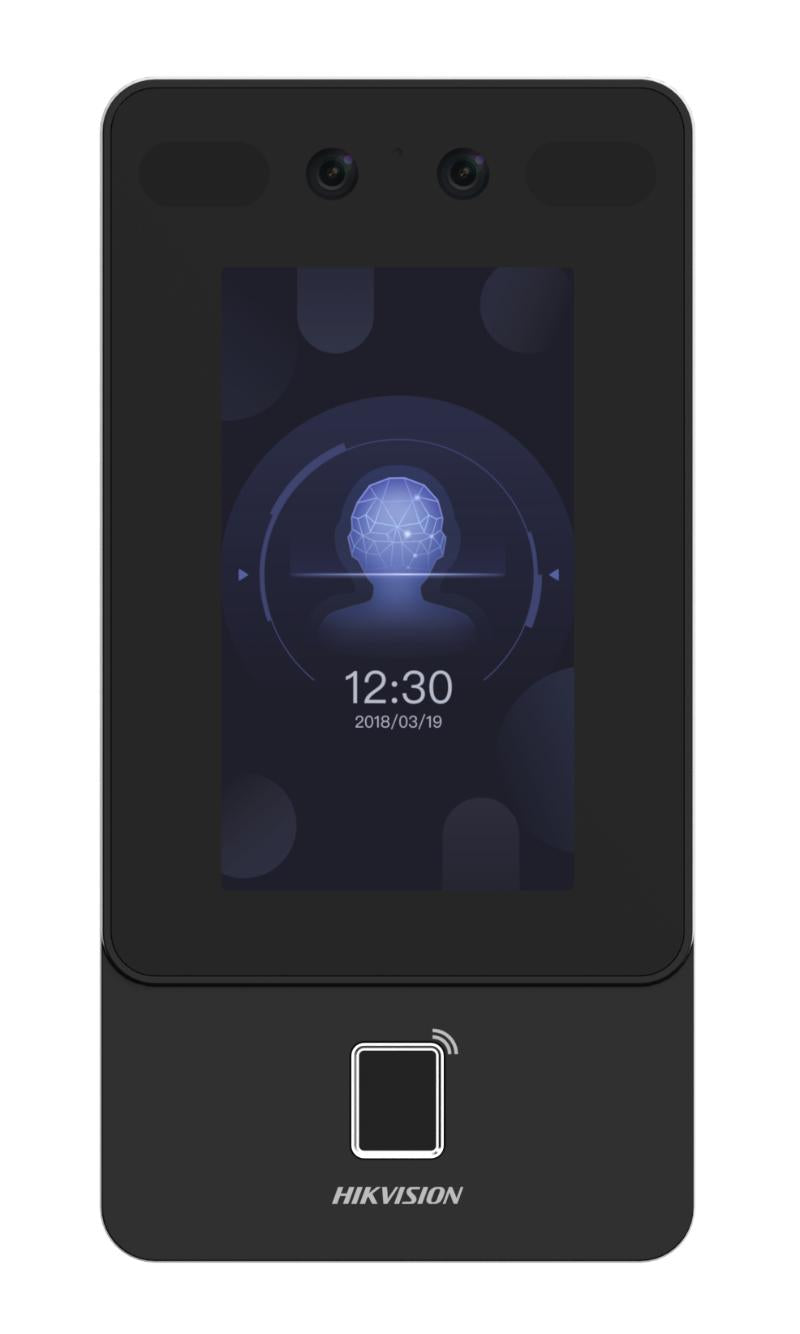

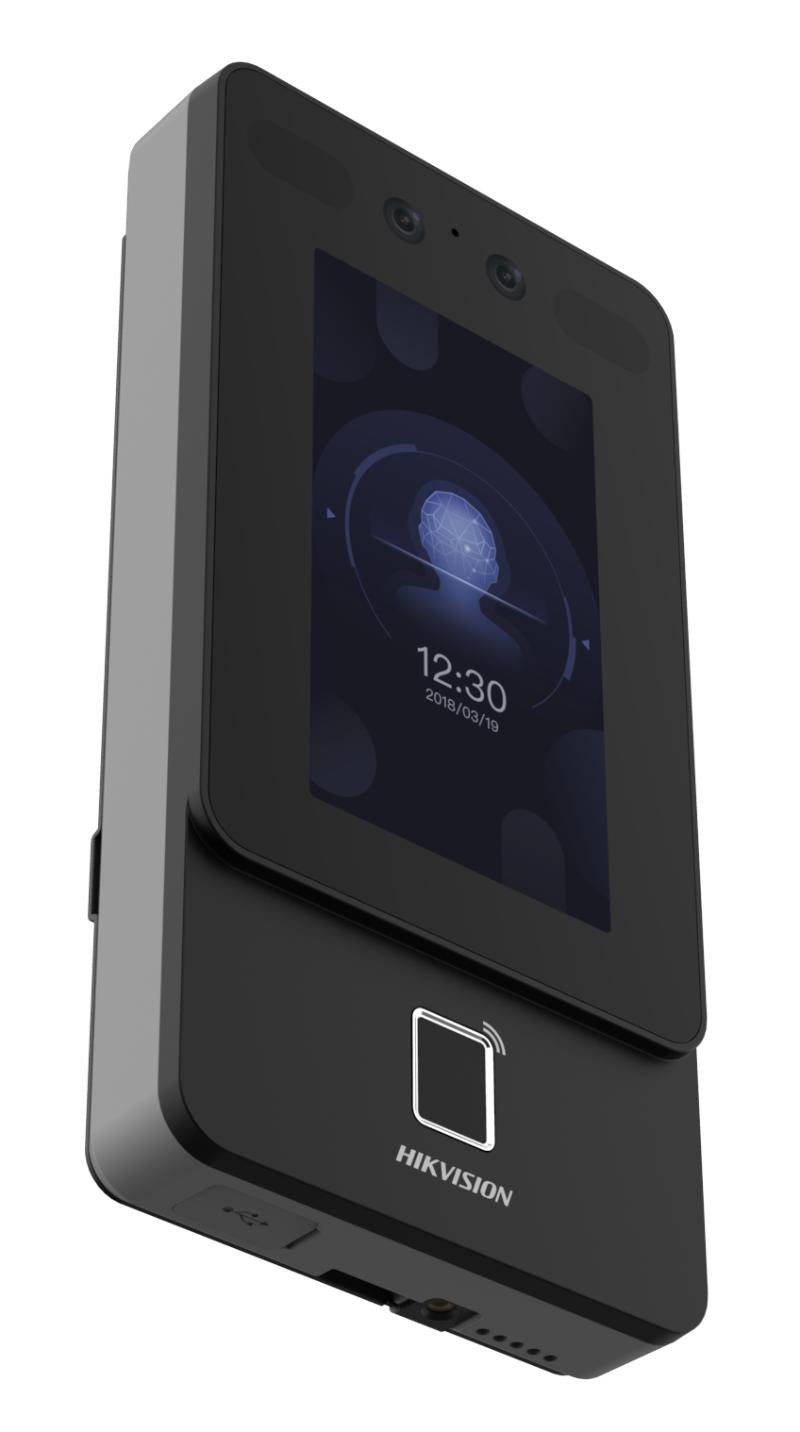

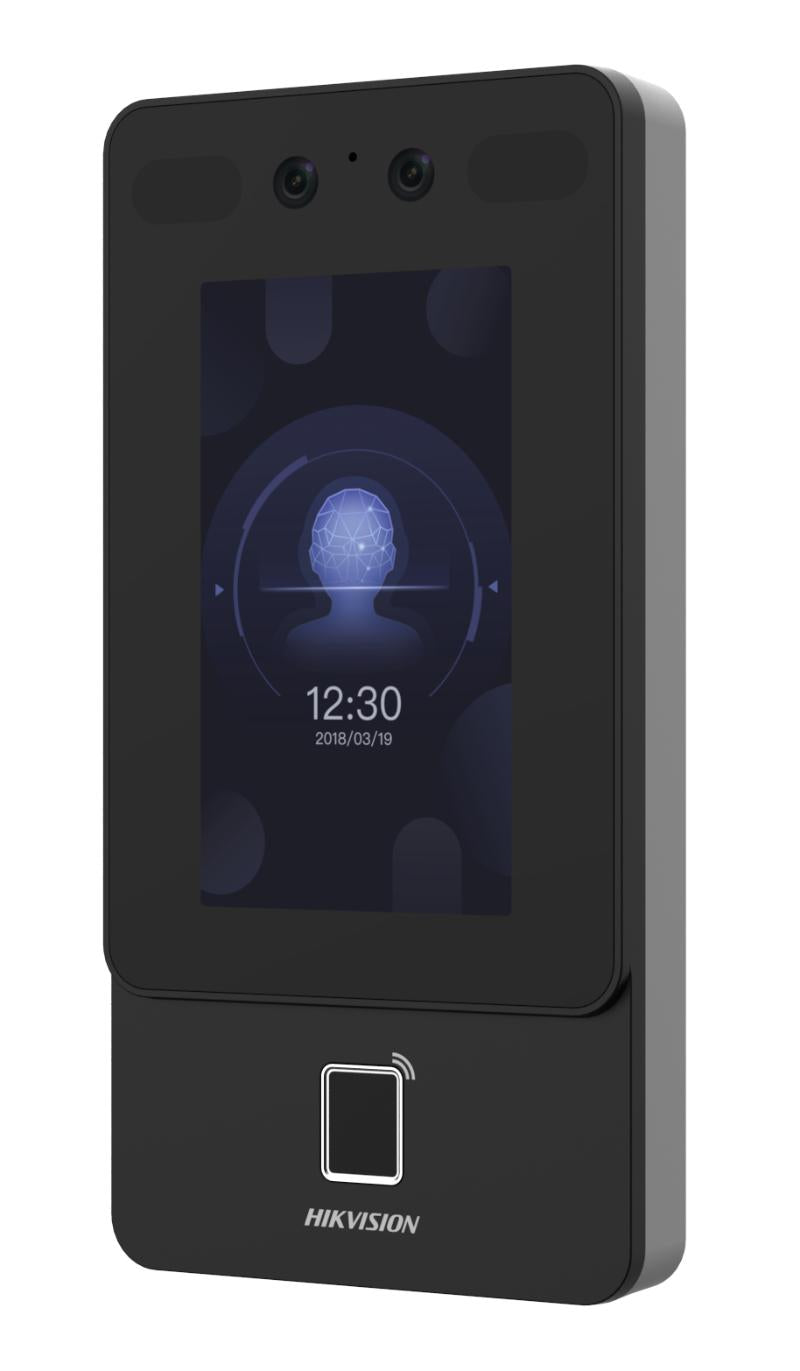

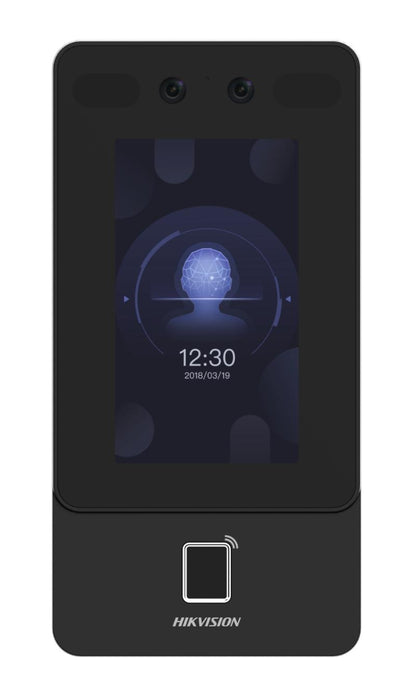

• Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
• Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
• Supports ISAPI, ISUP5.0
• Configuration via the web client
• Face Recognition Distance: 0.3 m to 1.5 m
• Duration < 0.2 s/User
• Accuracy rate ≥ 99%
• Supports mask recognition
• Supports Push SDK.
• Supports face duplicate check, preventing multiple people from using the same face.
• Supports attendance-only function.
• Supports the following SIP servers: ASTERISK, 3CX, ELASTIX, miniSipServer, Brekeke, OpenSIPs, Kamailio.

Display

• Screen size4.3 inch
• Operation methodCapacitive touch screen
• TypeLCD

Video

• Lens2
• Resolution2 MP

Audio

• Audio qualityNoise suppression and echo cancellation

Network

• Wired networkSupport
• Wi-FiSupport, 2.4 G, 802.11b/g/n

Interface

• Network interface1 RJ-45, 10/100 M self-adaptive
• Lock control1
• Exit button1
• Door contact input1
• TAMPER1
• RS-4851 RS-485 (Half duplex, HIKVISION)
• Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
• USB1

Authentication

• Card typeM1 card
• Card reading frequency13.56 MHz

General

• Power supply12 VDC, 1 A (power adapter included)
• Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
• Working humidity0 to 90% (No condensing)
• Dimensions91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96")
• InstallationWall mounting

• Gross weight: 0.93 kg (2.05 lb)

  Net weight: 0.36 kg (0.79 lb)

• Language English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Brazilian Portuguese, Japanese, Korean, Chinese Traditional, French, Turkish, Kazakh and Uzbek.
• PlatformHik-ProConnect and HikCentral Professional

Function

• Face anti-spoofingSupport
• Audio promptSupport
• Time synchronizationSupport
