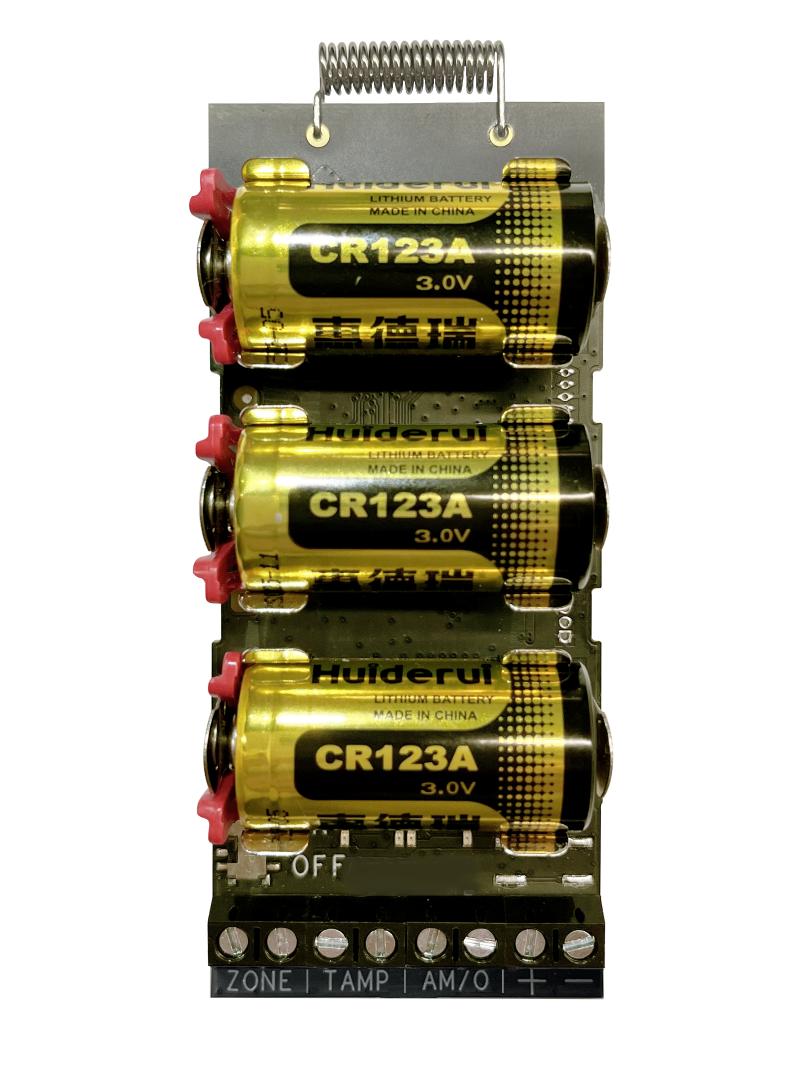

• Small size design, which can be put into wired detector easily
• 433MHz two-way wireless communication
• LED display, show the real status of device
• With one tamper input and one PGM, can be used as zone input or alarm outpout
• With 3.3v voltage output, can be used to power up external wired detector
• Detection of device removal by accelerometer

Hardware features

• Serial port1
• Power switch1
• Alarm input1 Alarm, 1 Tamper
• Alarm output1 PGM, AM/Output
• 3.3v Output1, up to 10mA

Display

• Indicator3: Alarm/Tamper（Red）, Fault（Amber）, Signal Strength（Green/Red）

Electrical characteristics

• Power supply3 CR123
• Operation humidity10%~90%
• Operation temperature–10℃ ~ 55℃
• Power consumption

  Quiescent current: 40.29 uA

  Max current: 47.85mA

  Voltage: 3 VDC

• Battery life spanUp to 5 years (standby time)

Wireless transmission

• RF frequency433MHz
• RF methodTwo-way communication
• RF modulation2GFSK
• RF distance1300m

General

• Installation methodPut inside Wireless Ready Detector
• Dimension(WxHxD)102*41*20mm
• 35g(Without Battery), 90g(With Battery)
