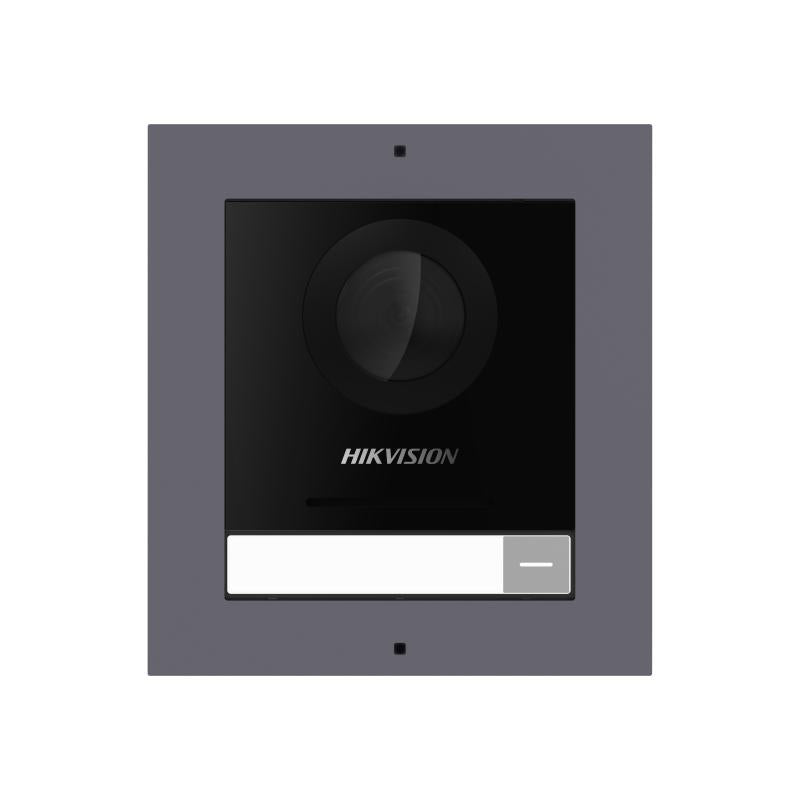

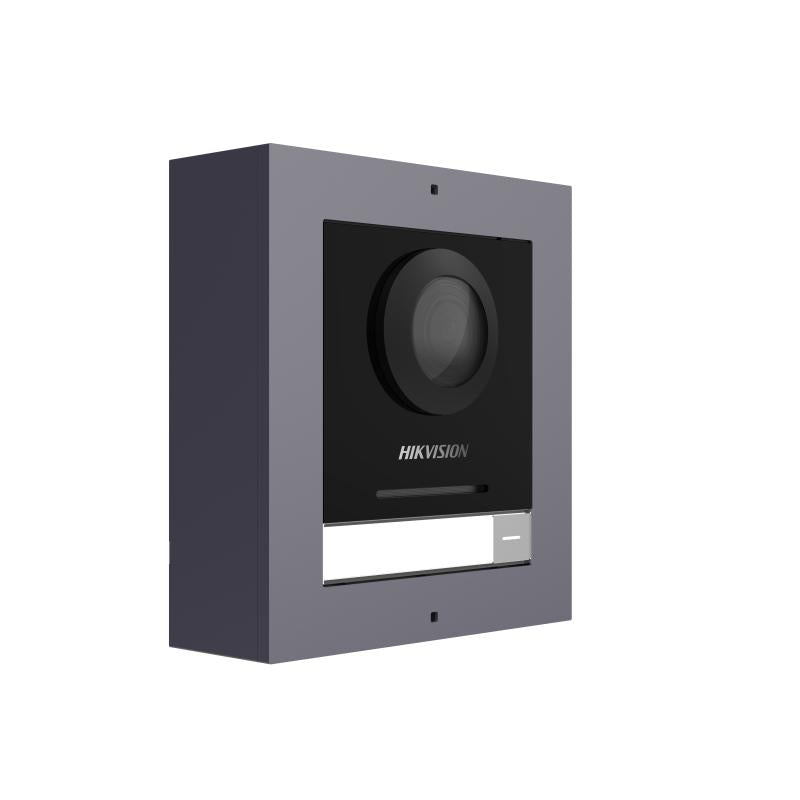

• Surface mounting main unit of modular door station
• 2 MP fisheye Camera with IR Supplement
• One call Physical Button For easier calls
• Two-lock control
• Standard PoE power supply
• IP65 protection level
• Convenient configuration via Web remotely
• Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply

System parameters

• Operating systemEmbedded Linux operation system
• ROM32 MB
• RAM256 MB
• CPUEmbedded Processor

Display parameters

• Screen sizeNA
• Operation methodNA
• TypeNA
• ResolutionNA

Video parameters

• Supplement lightLow illumination, IR supplement lights
• Video standardH.264
• Lens1
• FOVHorizontal: 146°, Vertical: 82°
• WDR

  Support

• Resolution2 MP
• Audio parameters
• Audio input

  Built-in omnidirectional microphone

• Audio compression standardG.711 U, G.711 A
• Audio outputBuilt-in loudspeaker
• Audio compression bitrate64 Kbps
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable

Capacity

• Fingerprint capacity/
• User capacity2000
• Card capacity6000
• Face capacityNA
• Linked indoor station capacity500
• Event capacity/
• Sub door station capacity16

Network parameters

• Communication protocolTCP/IP, RTSP
• Wired network10/100 Mbps self-adaptive Ethernet
• Wi-FiNA
• BluetoothNA
• 3G/4GNA

Device interfaces

• Alarm input4 (2 exit butttons and 2 door contacts by default)
• Network interface1 RJ45
• TAMPER1
• Exit button2 (2 for lock control)
• Door contact input2
• RS-4851 (1 for Hikvision's sub module communication)
• WiegandNA
• TF cardNA
• Alarm outputNA
• Lock control2 (2 relay, max to 30 V, 2 A)
• USBNA
• Power interface12 VDC power output (max to 12 V, 500 mA)
• Two-wire IP interfaceNA

General

• Power supply12 VDC/PoE ( IEEE 802.3af)
• Working temperature-40° C to 60° C (-40° F to 140° F)
• Working humidity10% to 95%
• Button1
• Protective levelIP65
• InstallationSurface mounting
• Dimensions(L × W × H)

  Device: 98 mm × 100 mm × 42 mm (3.86" × 3.94\" × 1.65\")

  Cover:117 × 107 × 4 mm (4.61 × 4.21\" ×0.16\")

  Installation Frame:117 × 107 × 32.7mm (4.61 × 4.21\" ×1.29\")"

• LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
• Indicator0

• Without package: 0.600 kg

  With Package: 0.865 kg

• Battery/
• Application environmentOutdoor
• Power consumption≤ 5 W
