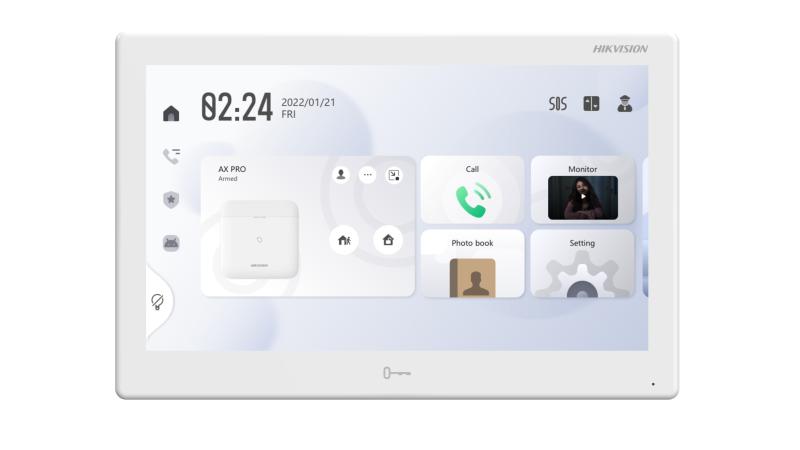

• 10.1-inch colorful touch screen with 1024 × 600 resolution
• Built-in Android System
• Supports Android APP installation
• Support for three-party software integration
• Built-in Hik-Connect APP
• For all-in-one management of Hikvision’s devices on tablet

System parameters

• Operation systemAndroid 10.1
• ROM8 GB
• RAM2 GB
• ProcessorEmbeded high performance processor

Display parameters

• Screen size10.1-inch
• Operation methodCapacitive touch screen
• TypeColorful IPS
• Resolution1024 × 600

Video parameters

• Lens/
• Resolution/
• FOV/
• Wide dynamic range (WDR)/
• Video compression standardH.265；H.264
• Focal length/

Audio parameters

• Audio input1 built-in omnidirectional microphone
• Audio compression standardG722.1, OPUS, AAC_LC, AAC_LD, G726, G711.U, G711.A
• Audio output1 built-in loudspeaker
• Audio compression bitrate64 Kbps
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable

Capacity

• Message capacity200 captured pictures, 200 alarm records
• Notice capacity200
• Linked indoor extensions capacity16
• Linked network camera capacity16
• Linked doorphone capacity17

Network parameters

• Network protocolTCP/IP, SIP, RTSP
• Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth/
• 3G/4G/
• Zigbee/

Device interfaces

• Alarm input8
• Network interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-4851 RS-485 (Half duplex)
• TF cardSupport TF card, up to 128 G
• Alarm output1
• Lock control1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)

General

• Button/
• InstallationSurface mounting
• Indicator/

• Net weight: 875 g

  Gross weight: 1060 g

• Protective level/
• Working temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working humidity10% to 90% (no-condensing)
• Dimension (W × H × D)254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05")
• Battery/
• Power supply12 VDC, 1 A, IEEE802.3af, standard PoE
• Application environmentIndoor
• Power consumption≤ 12 W
• LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
