HIKVISION IP Based Wireless Video Door Phone/Bell|7-inch Colorful TFT Screen|Resolution 1080p|Wide Angle Coverage|BuiltIn Microphone & Loudspeaker|Echo Cancellation|Water& Dust Resistant

HIKVISION IP Based Wireless Video Door Phone/Bell|7-inch Colorful TFT Screen|Resolution 1080p|Wide Angle Coverage|BuiltIn Microphone & Loudspeaker|Echo Cancellation|Water& Dust Resistant

Get Quote on WhatsApp

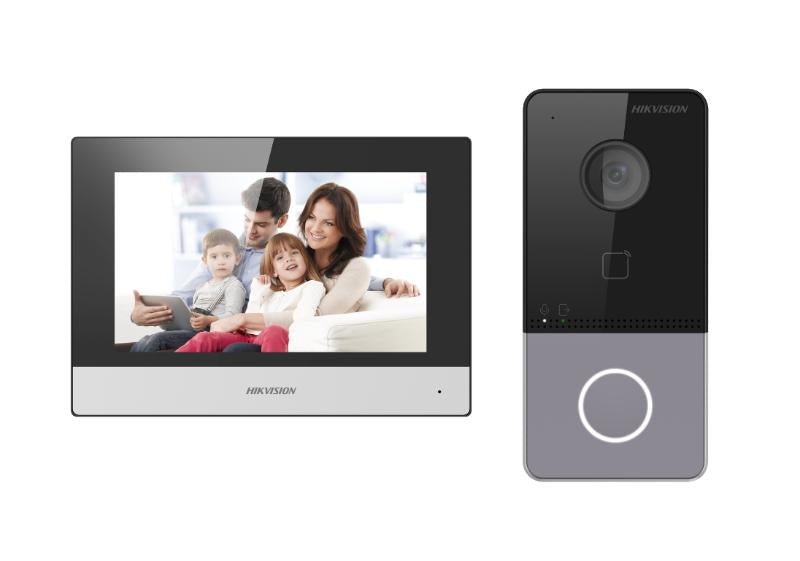

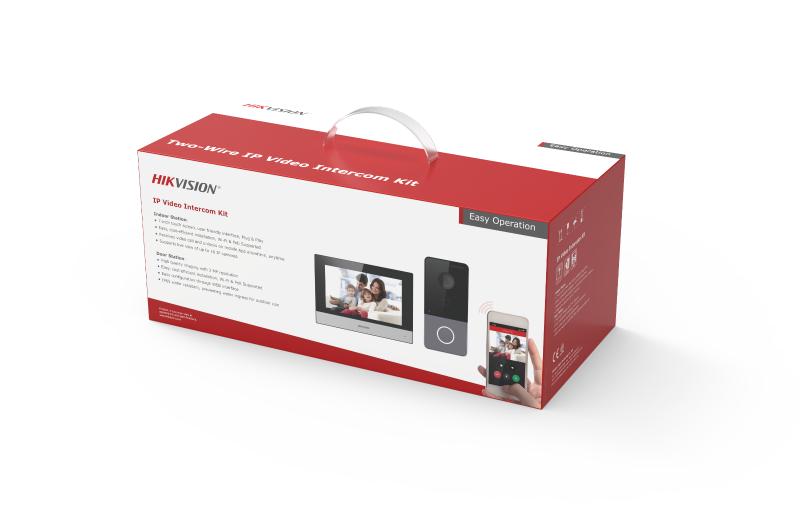

IP Video Intercom Kit

  • IP video intercom for villa or house
  • One call button for easier calls
  • Convenient Hik-Connect APP Mobile Control
  • Including: DS-KV6113-WPE1(C) x1, DS-KH6320-WTE1 x1, DSKABV6113-RS × 1, Administrator card x 1, Key fob x 5, PSU x2

  • Door station/System parameters

  • Operation systemEmbedded Linux operation system
  • Flash32 MB
  • RAM256MB

  • Door station/Video parameters

  • Camera2MP HD camera
  • Night visionLow illumination IR supplement mode:3 m
  • Backlight compensationSupport
  • Digital noise reductionSupport
  • WDRTrue WDR
  • Field of viewHorizontal: 131° Vertical: 78°
  • Video Compression StandardH.264; H.265; MJPEG
  • StreamMain stream: 1080p@25fps, 720p@25fps Sub stream: 720@25fps,480@25fps
  • Motion detectionSupport
  • Flash-avoid frequency50 Hz, 60 Hz

  • Door station/Audio parameters

  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Audio compression standardG711U、G711A、G726、AAC_LC、AAC_LD、OPUS、G722.1
  • Audio compression Rate64 Kbps

  • Door station/Network parameters

  • Network protocolTCP/IP, RTSP, IPV6,ONVIF
  • Wired network10/100 Mbps Ethernet

  • Door station/Device interfaces

  • RS-4851
  • Alarm input4
  • Debugging port1
  • TAMPER switch1

  • Door station/General

  • Power consumption＜ 10 W
  • Working temperature-40° C to 53° C(-40° F to 127.4° F)
  • Working humidity10% to 95%
  • Dimension138 mm × 65 mm × 27 mm
  • InstallationSurface mounting
  • Protection levelIP65
  • Indicator2
  • Power supply

    IEEE802.3af, standard PoE

    12 VDC

  • Indoor station/System parameters

  • Operation systemEmbedded Linux operation system
  • Memory128 MB
  • Flash32 MB

  • Indoor station/Display parameters

  • Display screen7-inch colorful TFT screen
  • Display resolution1024 × 600
  • Operation methodCapacitive touch screen
  • Indoor station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Audio compression standardG.711 U
  • Audio compression Rate64 Kbps

  • Indoor station/Network parameters

  • Wired network10/100 Mbps self-adaptive
  • Wireless networkWi-Fi 802.11 b/g/n
  • ProtocolTCP/IP, SIP, RTSP
  • RS-4851 RJ-45 10/100 Mbps self-adaptive
  • Indoor station/Device interfaces
  • RS-4851
  • Alarm input8-ch alarm inputs
  • Relay output2
  • TF cardMax to 32 G, SD 2.0 or lower version

  • Indoor station/General

  • Power consumption≤ 6 W
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10% to 90%
  • Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
