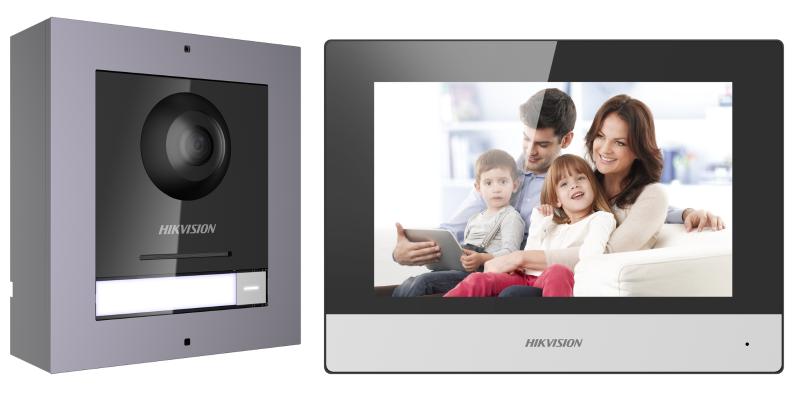

• IP video intercom kit for villa or house, only one call button

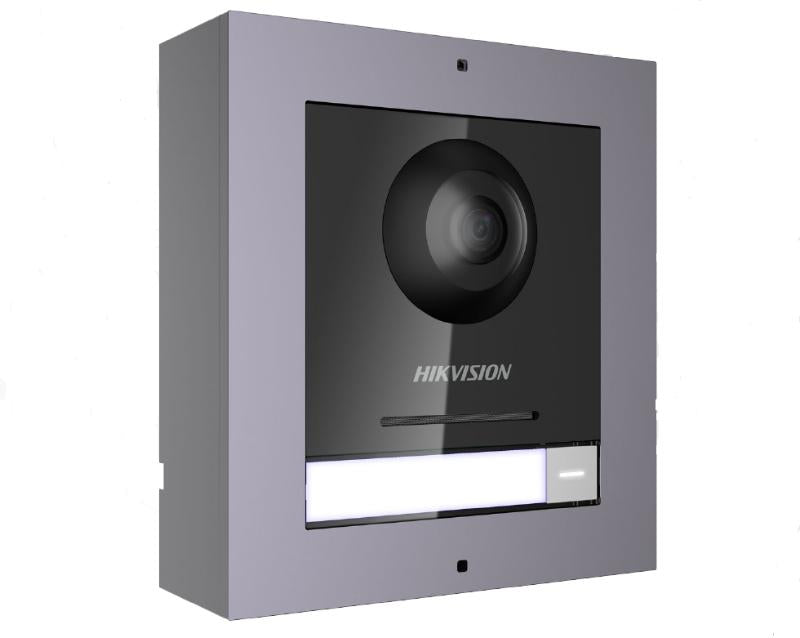

• DS-KD8003-IME1/Surface x1
• DS-KH6320-WTE1 x1
• 4 port standard PoE switch x1
• 16GB TF card x1
• European power supply adaptor included (please mark for other standards when you order)

System parameters

• ProcessorEmbedded MCU Processor
• Operation systemEmbedded Linux Operation System

Display parameters

• Display Resolution1024 × 600
• Display Screen7-inch colorful TFT screen

Audio parameters

• Audio Compression Rate64 Kbps
• Audio Compression StandardG.711 U
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio QualityNoise suppression and echo cancellation

Network parameters

• Ethernet10/100 Mbps Self-Adaptive Ethernet
• Network protocolTCP/IP, RTSP

Device interfaces

• I/O input4
• I/O output2

General

• Power supply12 VDC/PoE ( IEEE 802.3af)
• Power consumption≤10 W
• Working temperature-40° C to +60° C (-40° F to 140° F)
• Working humidity10% to 95%
• Dimension (L x W x D)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")

• 683 g (with packaging)

  355 g (without packaging)

• IP protection levelIP65
• Memory128 MB
• Dimensions(L × W × H)98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
