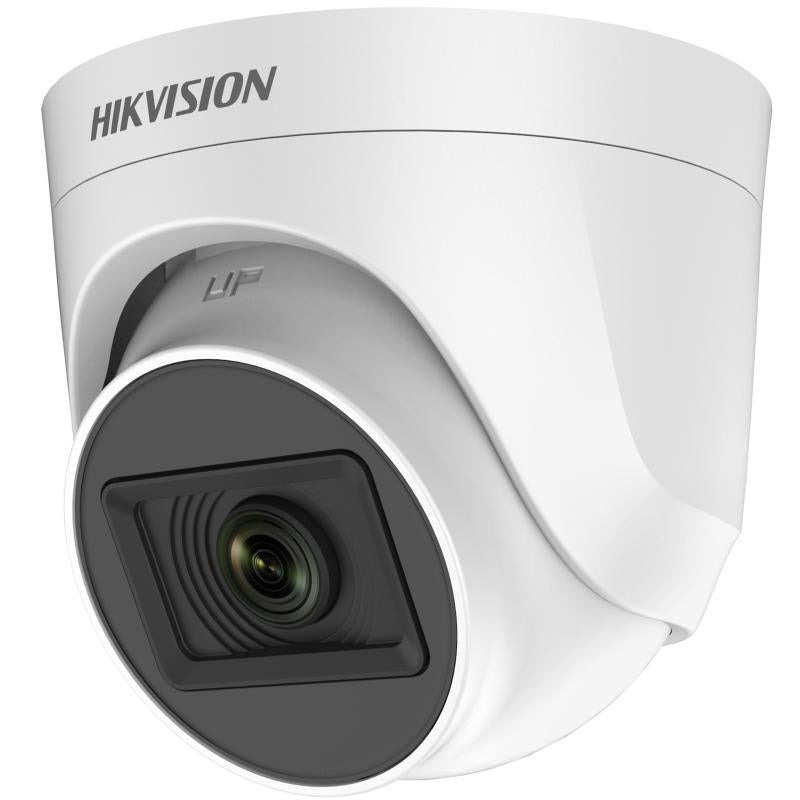

• 8 MP turret camera
• EXIR 2.0: advanced infrared technology with 30 m IR distance
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

Camera

• Image Sensor8.29 MP CMOS
• Signal SystemPAL/NTSC
• Frame Rate

  TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

  AHD: 8MP@15fps

  CVI: 8MP@12.5fps, 8MP@15fps

  CVBS: PAL/NTSC

• Resolution3840 (H) × 2160 (V)
• Min. illumination0.01 Lux@(F1.6, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/12.5 s to 1/50, 000 s

  NTSC: 1/15 s to 1/50, 000 s

• Lens2.8 mm, 3.6 mm, 6 mm fixed lens
• Horizontal Field of View102.9° (2.8 mm), 79° (3.6 mm), 44.7° (6 mm)
• Lens MountM12
• Day & NightICR
• WDR (Wide Dynamic Range)Digital WDR
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°

Menu

• Image ModeSTD/HIGH-SAT
• AGCSupport
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceATW/MANUAL
• HLCYes
• BLC (Backlight Compensation)Yes
• LanguageEnglish
• FunctionsBrightness, Sharpness, Mirror, Smart IR

Interface

• Video OutputTVI/AHD/CVI/CVBS

General

• Operating Condition-40 °C to 50 °C (-40 °F to 122 °F), humidity: 90% or less (non-condensation)
• Power Supply12 VDC ±25%
• Power Consumption

  Max. 2.2 W

• MaterialPlastic
• IR RangeUp to 30 m
• CommunicationHIKVISION-C
• DimensionsΦ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
• Approx. 150 g (0.33 lb.)
